產品介紹

船岸連接電纜

SHIP-TO-SHORE CONNECTION CABLES

用途 Application

適用于船舶停港口時接入岸上電源并向船 It is applicable to the power connection line connected

舶供電的電源連接線。 to the shore power supply and supplying power to the ship

取得CCS工廠（型式）認可證書 when the ship stops at the port.

型號Type	名稱Description

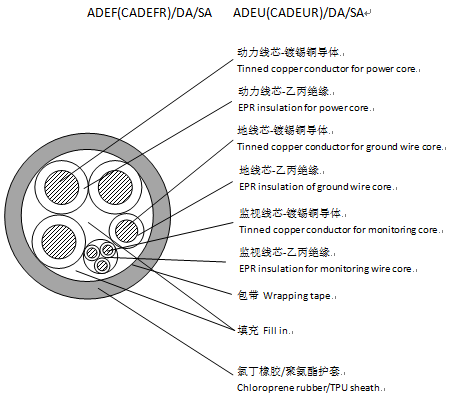

ADEF(CADEFR)/DA/SA	乙丙絕緣氯丁橡膠護套船岸連接電纜，DA/SA型 EPR insulated PCP sheathed Ship-to-Shore Connection Cable,Type DA/SA

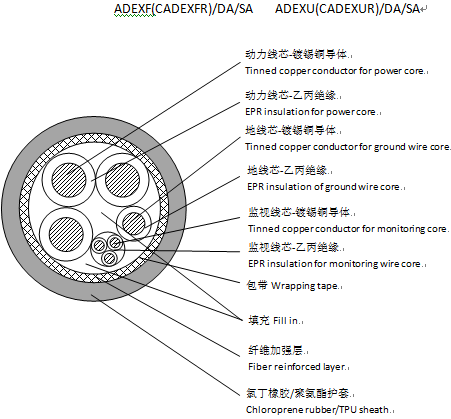

ADEXF(CADEXFR)/DA/SA	乙丙絕緣纖維編織加強層氯丁橡膠護套船岸連接電纜，DA/SA型 EPR insulated fiber braided reinforcement PCP sheathed Ship-to-Shore Connection Cable,Type DA/SA
ADEU(CADEUR)/DA/SA	乙丙絕緣聚氨脂護套船岸連接電纜，DA/SA型 EPR insulated TPU sheathed Ship-to-Shore Connection Cable,Type DA/SA
ADEXU(CADEXUR)/DA/SA	乙丙絕緣纖維編織加強層聚氨脂護套船岸連接電纜，DA/SA型 EPR insulated fiber braided reinforcement TPU sheathed Ship-to-Shore Connection Cable,Type DA/SA

船岸連接電纜電壓等級：0.6/1kV 90℃
芯數×動力線芯標稱截面 No.Of core×nominal cross sectional area of power core (mm²)	芯數×地線芯標 稱截面 No.Of core×nominal cross sectional area of ground wire core(mm²)	芯數×監視線芯標稱截面 No.Of core×nominal cross sectional area of monitoring core (mm²)	電纜最大外徑Max.acceptable cable overall diameter (mm)		參考重量 Reference weight (kg/km)


			U	F	U	F
1×70	-	-	20.9	22.8	1066	1170
1×95	-		23.2	25.6	1406	1552
1×120	-		25.4	28.1	1712	1887
1×150	-		28.1	30.7	2090	2282
1×185	-		30.8	33.7	2523	2756
1×240	-		34.7	38.0	3309	3617
3×25	1×16	2×2×1.5 2×2×2.5 1×2×1.5 1×2×2.5 3~9×1.5 3~9×2.5	30.6	33.8	1853	2078
3×35	1×35		34.6	37.9	2563	2863
3×50	1×50		40.6	44.4	3643	4048
3×70	1×50		44.8	49.1	4462	4962
3×95	1×50		49.2	54.0	5663	6280
3×120	1×70		54.6	59.9	6994	7741
3×150	1×95		60.8	66.6	8714	9620
3×185	1×95		65.6	72.1	10235	11352
3×240	1×120		74.2	81.4	13382	14789

產品主要性能	Main performance
具有耐阻燃、日光老化、耐磨、抗撕、耐鹽霧、耐循環彎曲（滿足IEC80005.1規定的5000次卷繞試驗）及優良的電性能（耐壓測試3.5KV/5min）。	flame resistance, sun aging, wear resistance, tear resistance, salt spray resistance, cyclic bending (meet IEC80005.1 provisions of 5000 winding test) and excellent electrical performance (pressure test 3.5kV /5min).
產品使用特性	Product features
額定電壓 U₀/U 為0.6/1KV ; 最低工作溫度（靜態）為-40℃；導體允許長期最高工作溫度為90℃；最大短路時間為5S時導體最高工作溫度不超過250℃；電纜最小彎曲半徑（靜態）為電纜外徑D的6倍。	Rated voltage U0/U is 0.6/1kV; The lowest operating temperature (static) is -40℃; The maximum allowable long-term operating temperature of the conductor is 90℃; When the maximum short-circuit time is 5S, the maximum operating temperature of the conductor shall not exceed 250℃; The minimum bending radius (static) of the cable is 6 times of the cable diameter D.
